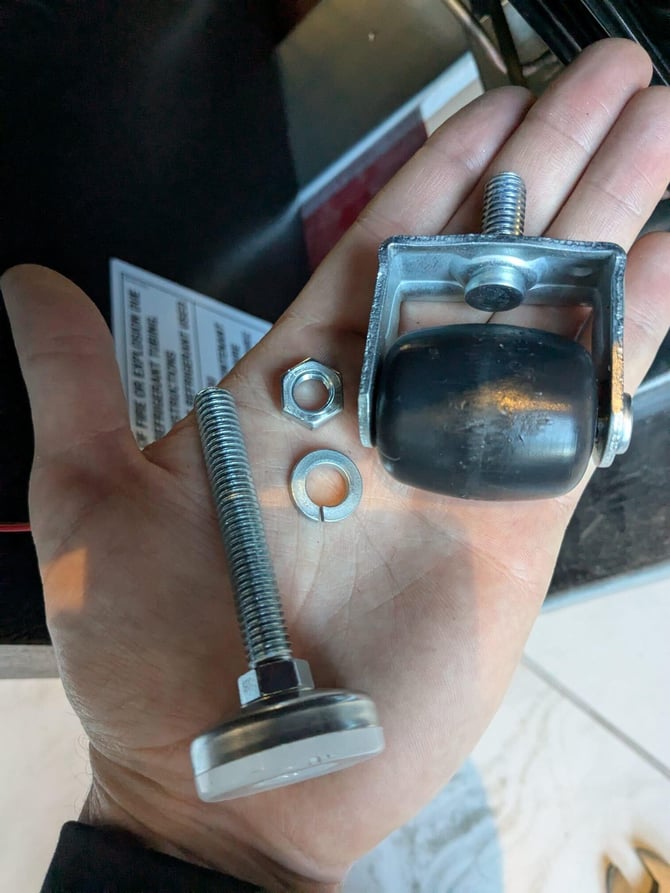

The leveling leg will not fit into the caster hole.

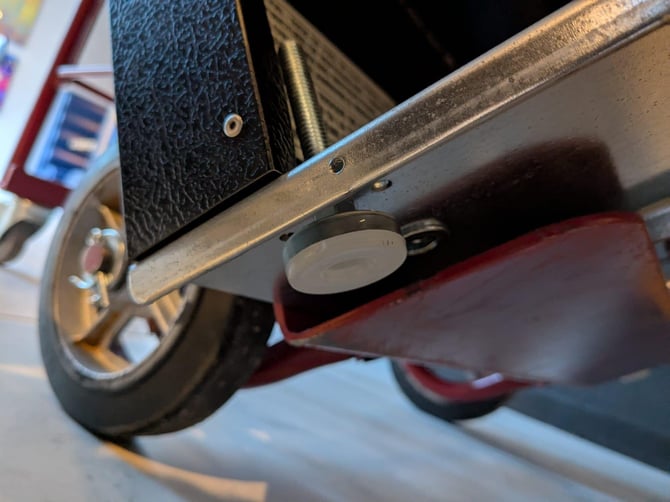

The caster hole is designed to accept a 3/8” bolt. The MFT leveling leg has an M12 stem that is about ½” dia.
The customer has the following option.
- To buy leveling legs in a local hardware store with a 3/8” stud, plus an additional 3/8” nut for each leg.
- Remove both: caster and MFT leveling leg.

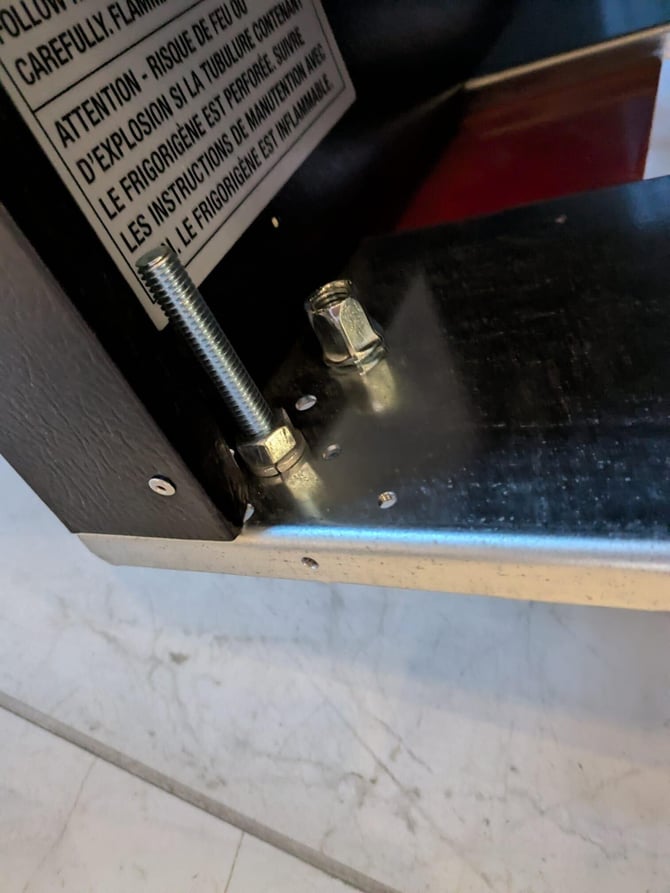

- Install purchased leveling legs instead of casters.
- Place the unit in a desired location. Using 2 nuts on each leg level the unit.
The leveling legs from the store are supposed to be rated for a minimum 1000 lbs load capacity.
.png?width=397&height=324&name=image001%20(9).png)
-
Bolt thread size: M12 (≈ 0.5" diameter)
-
Standard nut flat-to-flat size: 19mm
-
Compatible wrench/socket size:
-
Metric: 19mm
-
Imperial: 3/4" (acceptable if metric is unavailable, though slightly looser)
-
.png?width=293&height=336&name=unnamed%20(18).png)
